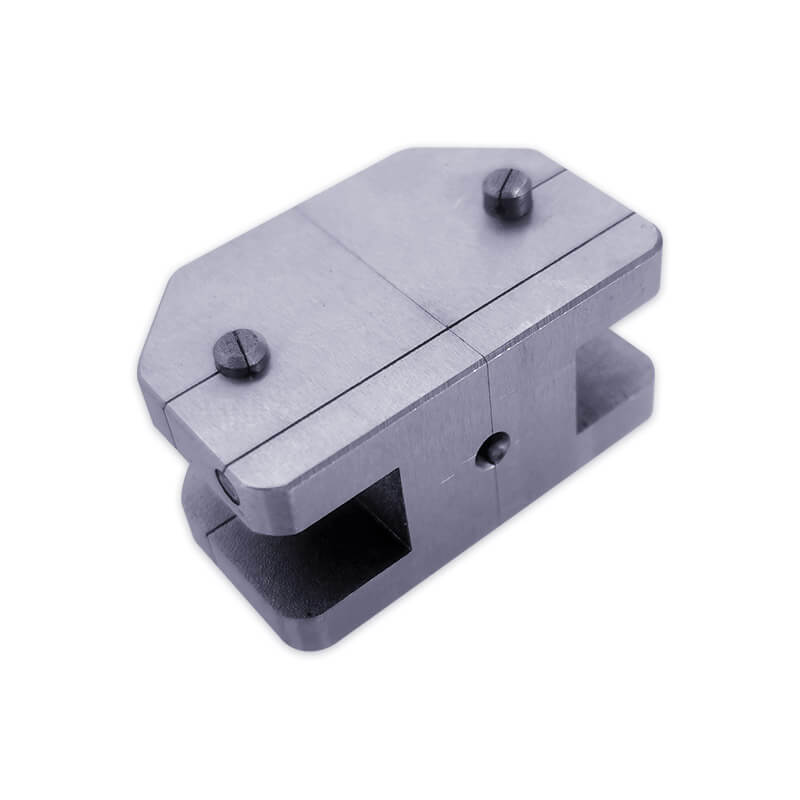

Bead Propulsion Fixture for Ball Tube Diamond Cutting Machine

Precision Feeding Fixture for Stable Ball Tube Processing

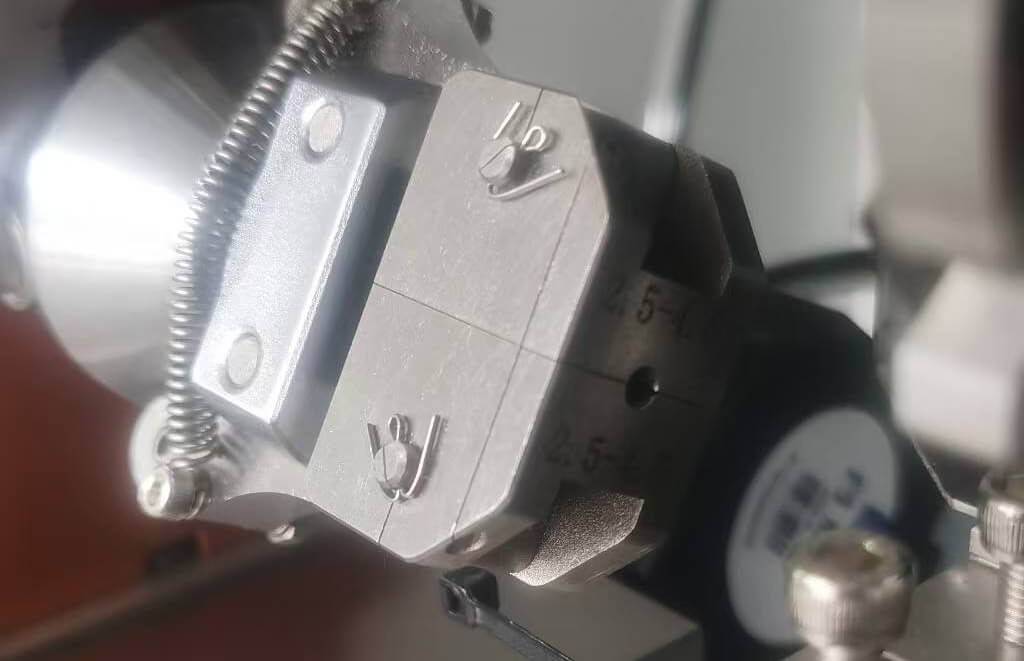

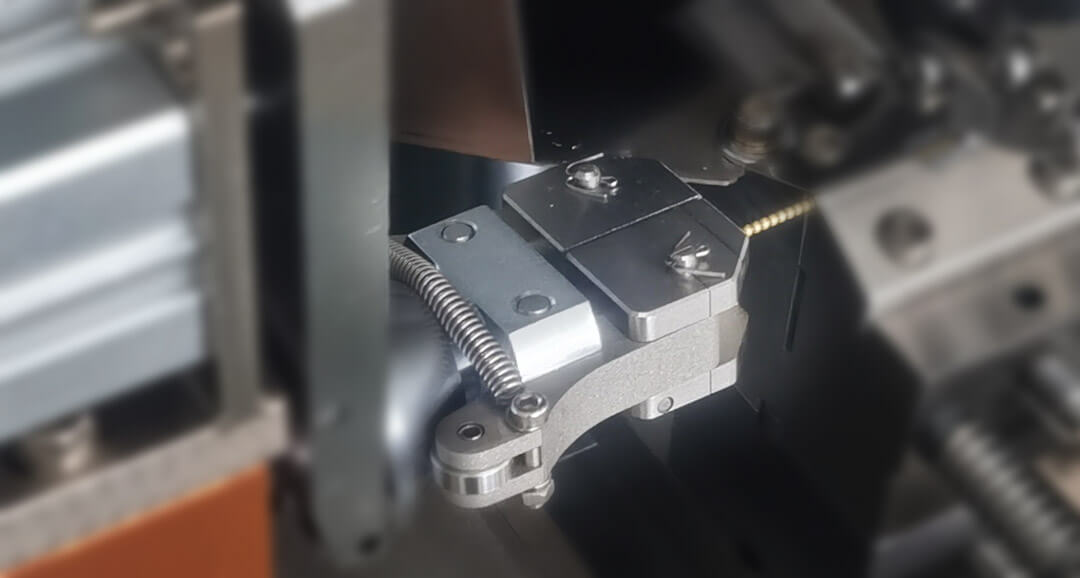

The Bead Propulsion Fixture is an essential accessory designed specifically for the Sible Ball Tube Diamond Cutting Machine. It securely clamps the ball tube during the diamond cutting process, ensuring smooth and stable feeding while maintaining consistent cutting accuracy.

Unlike ordinary fixtures, this feeding fixture is designed with an adjustable clamping mechanism, making it suitable for multiple ball tube sizes without requiring frequent replacement.

Features

Stable Clamping Performance

The fixture firmly holds the ball tube during machining, preventing slipping or vibration and ensuring consistent diamond cutting quality.

One Fixture for Multiple Sizes

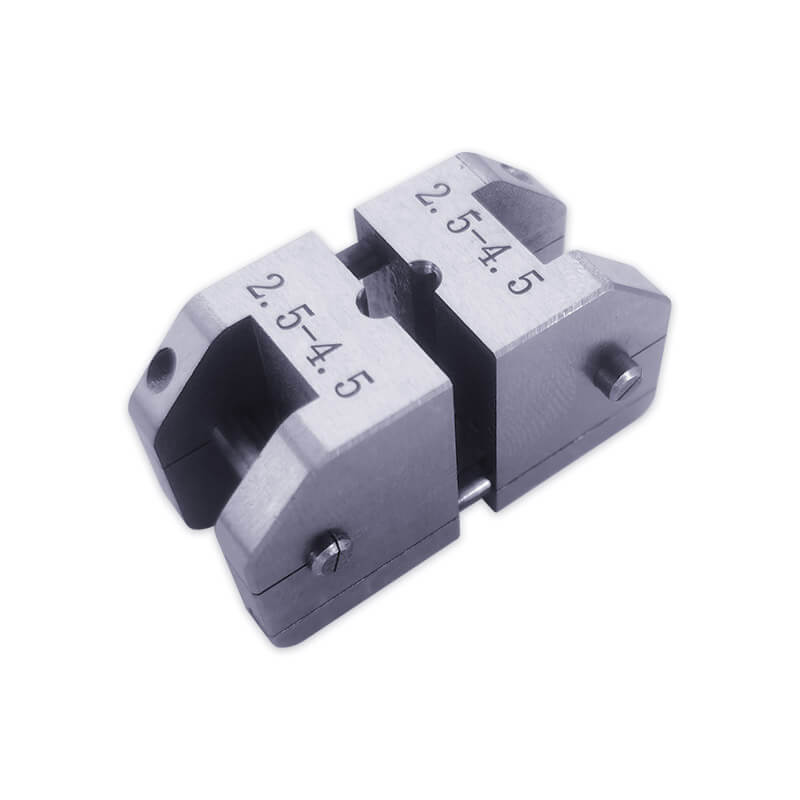

A single fixture can accommodate a range of ball tube specifications within its marked size range.

There is no need to replace the fixture for every diameter. Simply select the fixture according to the size markings.

Easy Adjustment

No complicated setup is required.

Operators only need to:

• Adjust the screw spacing

• Adjust the spring tension

The fixture can then be quickly adapted to different tube diameters.

Quick Installation

The fixture is easy to install and remove, minimizing machine downtime and improving production efficiency.

Durable Construction

Manufactured from high-quality precision components for long service life and reliable performance in continuous production.

Applications

The Bead Propulsion Fixture is suitable for:

• Gold Ball Tube

• Silver Ball Tube

• Copper Ball Tube

• Hollow Ball Tube

• Jewelry Ball Tube Production

Compatible with the Sible Ball Tube Diamond Cutting Machine for precision jewelry manufacturing.

Advantages

✔ Stable ball tube feeding

✔ High positioning accuracy

✔ One fixture supports multiple sizes

✔ Easy screw and spring adjustment

✔ Quick installation

✔ Reduced setup time

✔ Long service life

How to Adjust

1. Select the fixture according to the size marking.

2. Install the fixture onto the machine.

3. Adjust the screw spacing to match the ball tube diameter.

4. Fine-tune the spring tension until the ball tube feeds smoothly.

5. Begin machining.

The adjustment process takes only a few minutes and does not require specialized tools.

Technical Highlights

Why Choose Sible Bead Propulsion Fixture?

Designed specifically for Sible jewelry machinery, this fixture improves feeding stability while simplifying machine setup. Its adjustable design allows a single fixture to cover multiple specifications, reducing the number of fixtures required and lowering operating costs for jewelry manufacturers.
