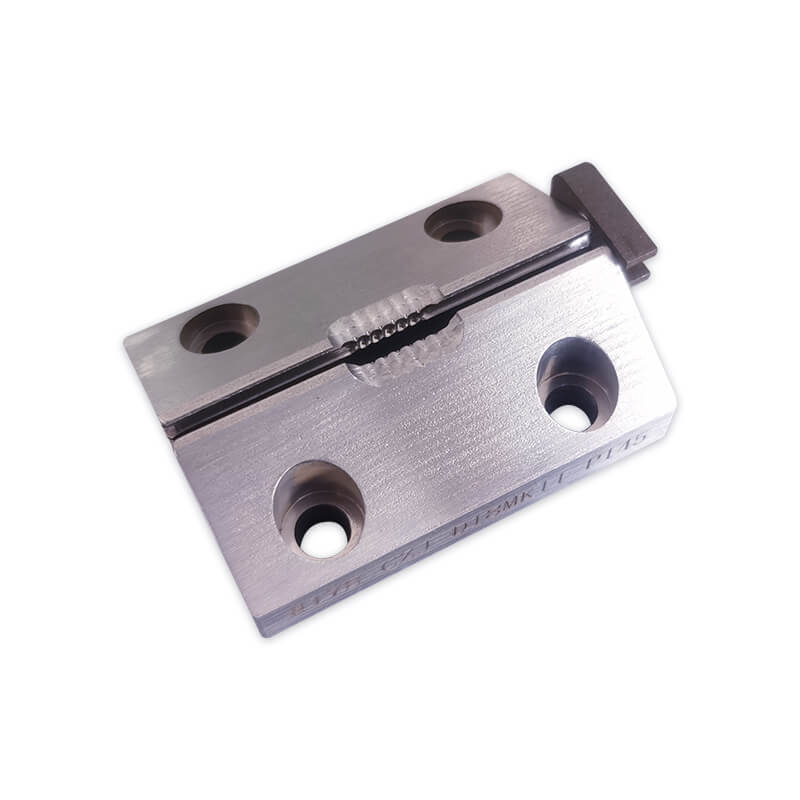

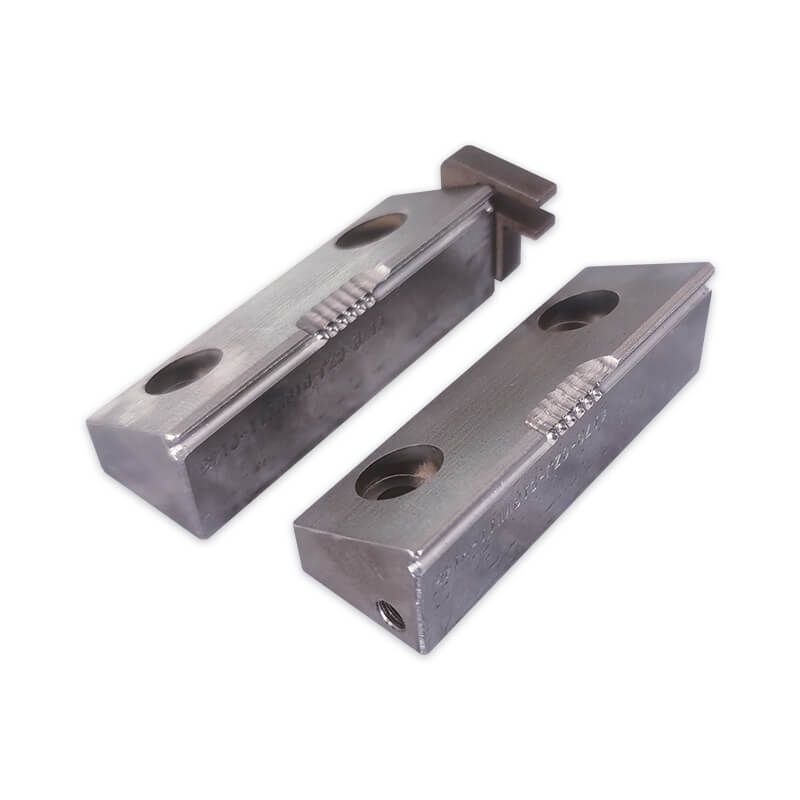

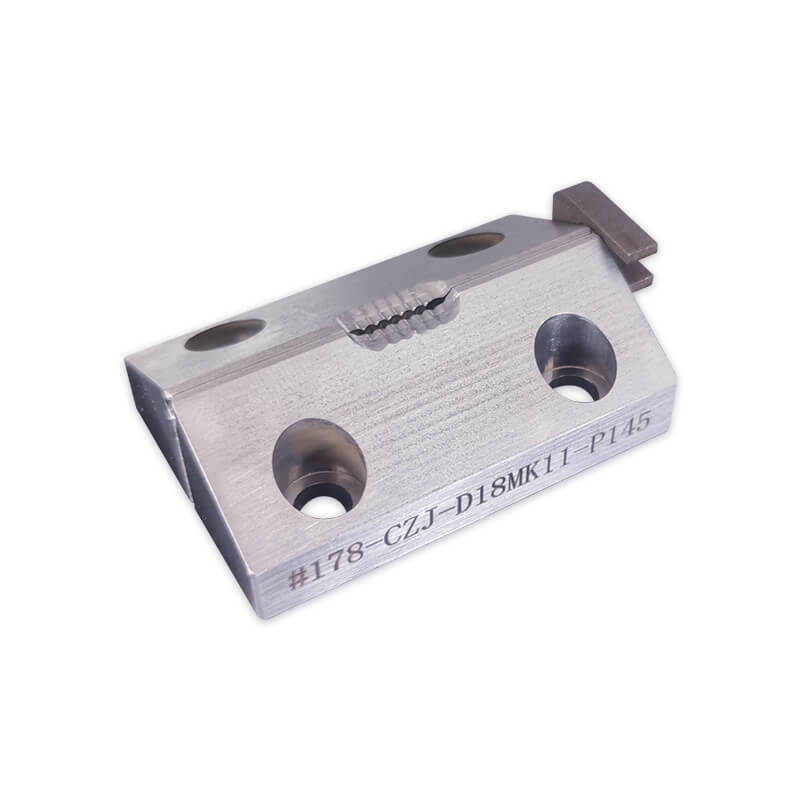

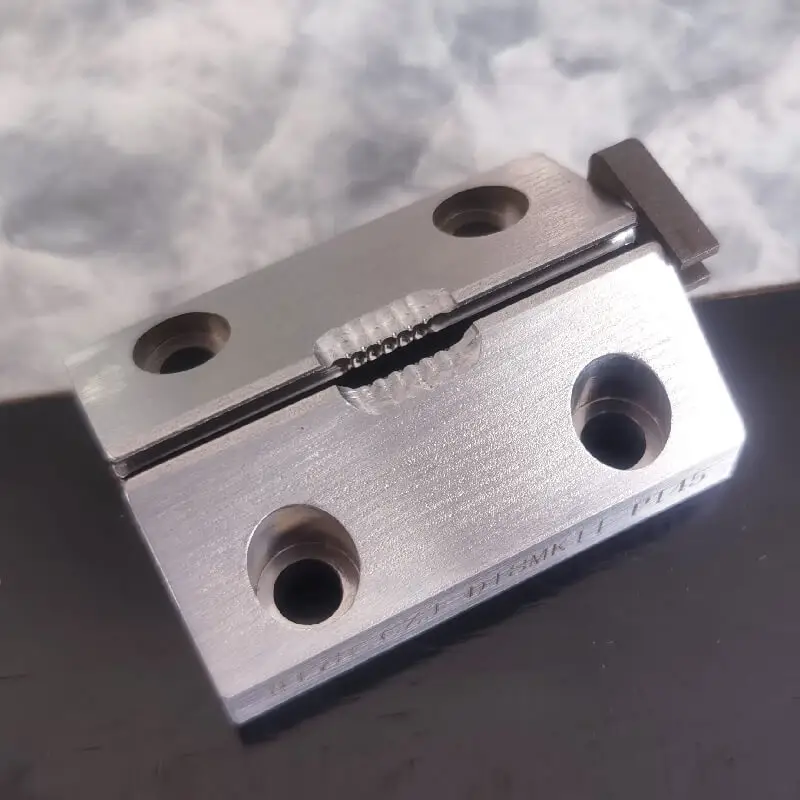

Bead Clips for Ball Tube Diamond Cutting Machine

Precision Clamping Fixture for Stable Ball Tube Diamond Cutting

The Bead Clips are specially designed clamping fixtures for the Ball Tube Diamond Cutting Machine. During the diamond cutting process, they securely hold the ball tube in position, ensuring stable feeding, accurate positioning, and consistent cutting quality.

Each Bead Clip is custom-manufactured according to the specifications of the ball tube being processed. To achieve the best cutting performance, the Bead Clip must match the corresponding Bead Mold parameters, including bead diameter, bead spacing (pitch), and other dimensional requirements.

Designed for quick installation and easy adjustment, the fixture can be mounted directly onto the designated mold holder. Once installed, simply verify that the clip can accurately clamp and release the ball tube throughout the cutting cycle to ensure smooth and reliable production.

Features

• Custom-designed for different ball tube specifications

• Precisely matches Bead Mold parameters

• Ensures stable clamping during diamond cutting

• Accurate positioning for consistent cutting quality

• Quick installation and simple adjustment

• Durable construction for long service life

• Easy replacement when changing production specifications

Applications

The Bead Clips are widely used in jewelry manufacturing for processing:

• Gold Ball Tubes

• Silver Ball Tubes

• Copper Ball Tubes

• Brass Ball Tubes

• Other precious metal tube materials

Suitable for various ball sizes and spacing configurations according to customer production requirements.

Custom Manufacturing

Because every jewelry design has different dimensions, Bead Clips are not universal components.

Each fixture is manufactured according to your production specifications, including:

• Ball diameter

• Ball spacing (Pitch)

• Tube diameter

• Matching Bead Mold specifications

• Ball Tube Diamond Cutting Machine model

Providing accurate production parameters ensures the highest machining precision and production efficiency.

Advantages

✔ High clamping accuracy

✔ Stable during high-speed cutting

✔ Easy installation and replacement

✔ Reduces positioning errors

✔ Improves cutting consistency

✔ Supports customized production requirements

Technical Notes

For optimum machining performance:

• The Bead Clip should always be used together with the matching Bead Mold.

• Both components must share identical specifications for bead size, spacing, and tube dimensions.

• Proper installation ensures smooth clamping and releasing during the entire cutting process, minimizing vibration and improving finished product quality.

Bead clamps suitable for tube cutting machines,Different diameter spheres require corresponding standard bead clamps.

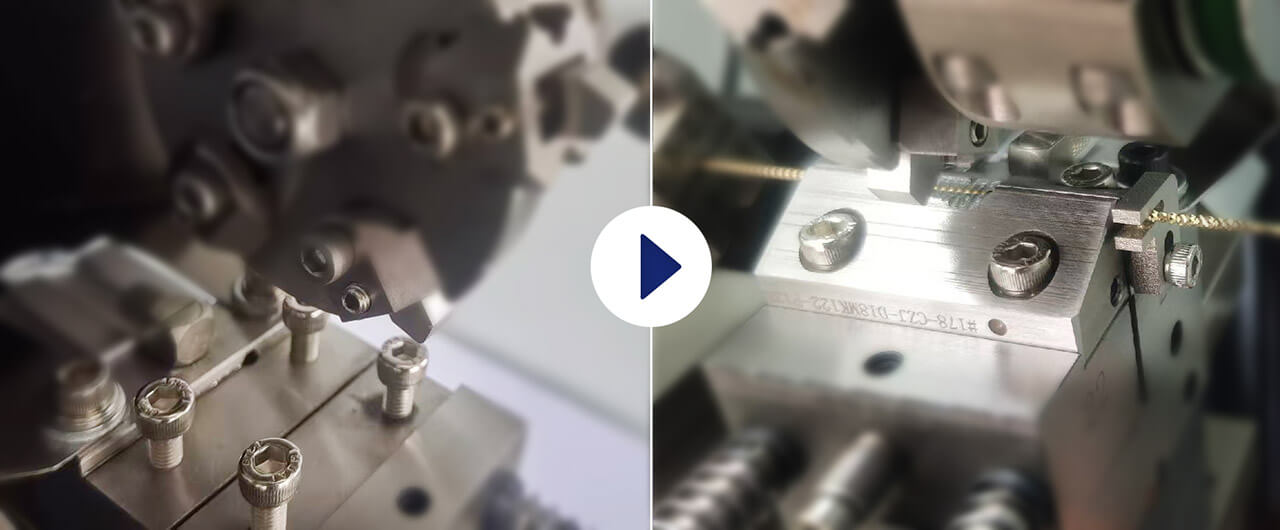

Comparison before and after installation
