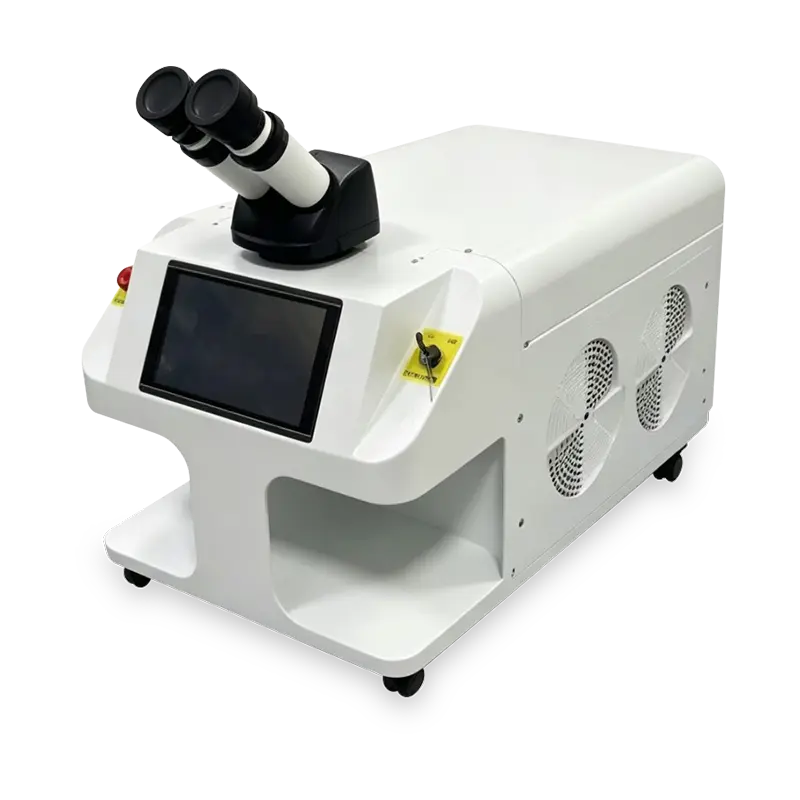

Desktop Precision Laser Welding Machine

This is a compact benchtop pulsed laser welding device, widely used for high-precision processing of small workpieces such as jewelry repair, micro electronic components, and tiny precision hardware parts.

Core Structure Features

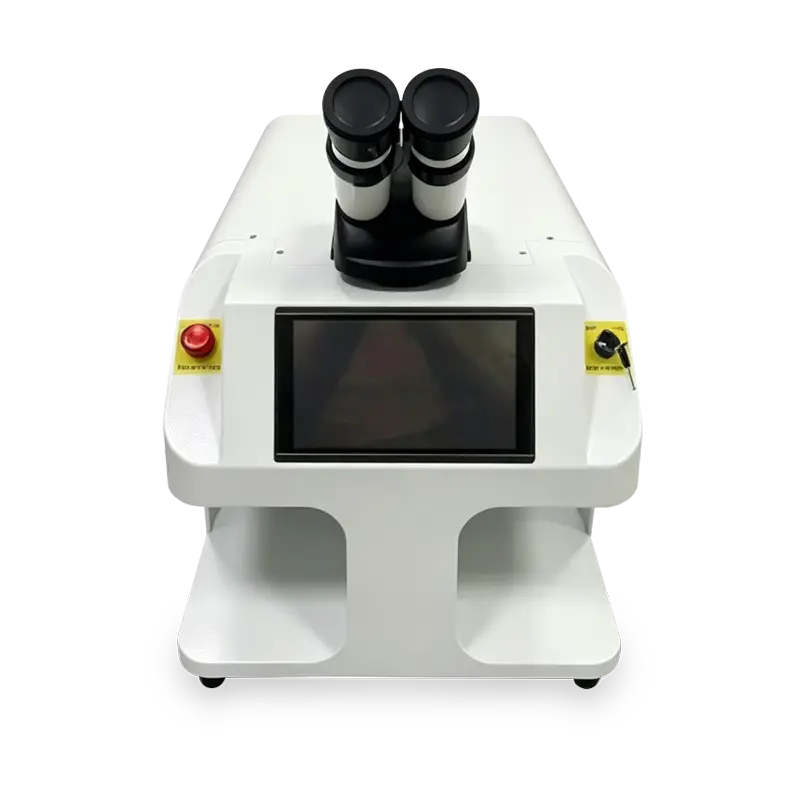

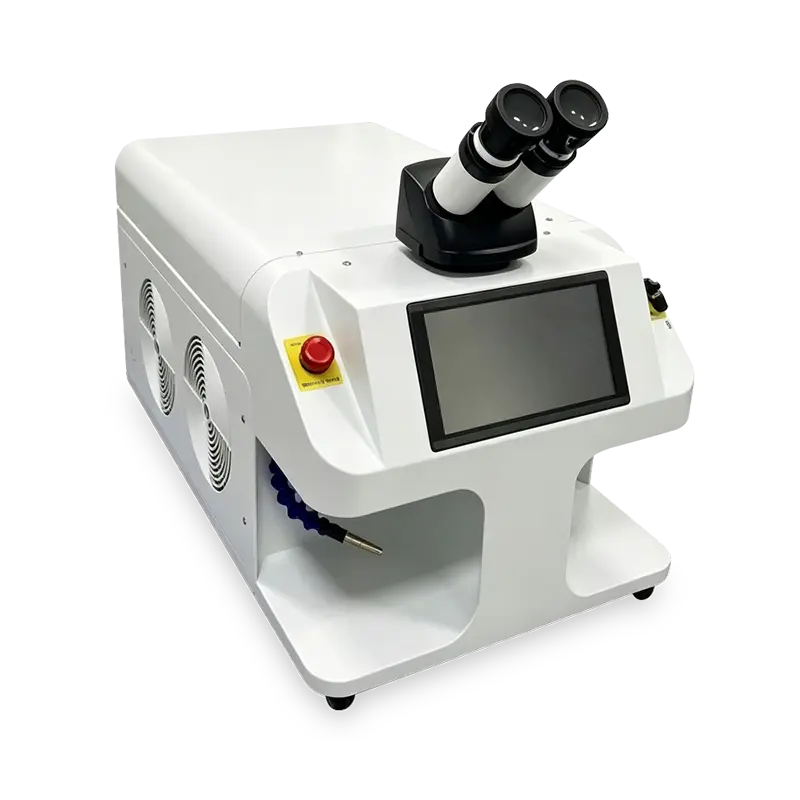

• ‌Binocular Stereo Microscope‌: Mounted on the top of the unit, it provides magnified, clear observation of the welding spot, enabling precise positioning for micron-level fine welding operations.

• ‌Touch Control Screen‌: The front integrated large touch panel allows direct adjustment of core process parameters including laser power, pulse duration, and welding frequency.

• ‌Safety Control Components‌: A red emergency stop button on the left side can immediately cut off laser output to avoid operational risks, while the key-operated power lock on the right manages device access permissions to prevent unauthorized use.

• ‌Compact Desktop Form Factor‌: The all-in-one white body with non-slip bottom pads requires no dedicated large installation station, and can be placed directly on a standard workbench for use.

Related Background Knowledge

Compared with large handheld laser welders, this small benchtop model has distinct targeted advantages:

• It creates an extremely narrow heat-affected zone, so the workpiece barely deforms during welding, making it ideal for processing precious metals like gold, silver, and titanium alloy jewelry.

• Most standard models support a welding thickness range of 0.1～2mm, and versions equipped with energy feedback systems can stably weld high-reflection metals such as copper and aluminum.

• The air-cooled integrated design eliminates the need for an external water chiller, with a total footprint of only about 0.2 square meters, perfectly fitting small jewelry workshops, boutique processing stores, and precision electronics laboratories.

Operation Safety Guidelines

You must follow these rules strictly during daily use:

• ✅ Wear professional laser safety goggles matched to the device's specific wavelength at all times, never look directly at the laser beam or its reflections to avoid permanent eye burns.

• ✅ Keep flammable and explosive materials far away from the welding area, and maintain good ventilation to discharge metal fumes generated during processing in time.

• ✅ Do not power off the device immediately after welding is completed. Let the built-in cooling system run for 5 to 10 extra minutes to fully cool the internal laser module, which can effectively extend the service life of the equipment.
