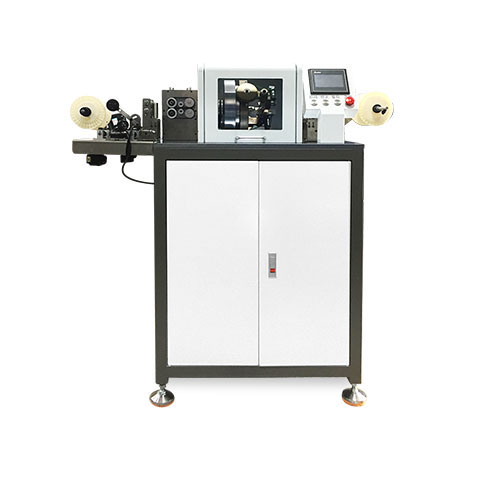

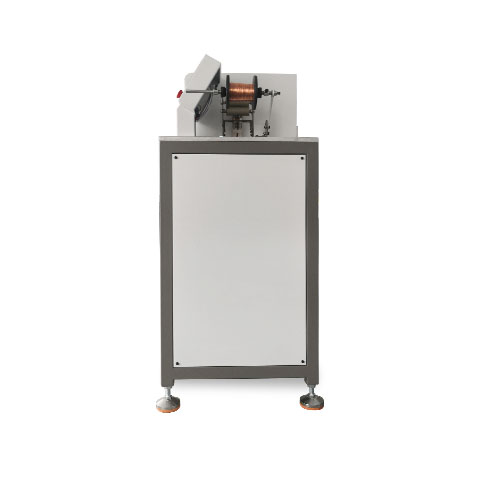

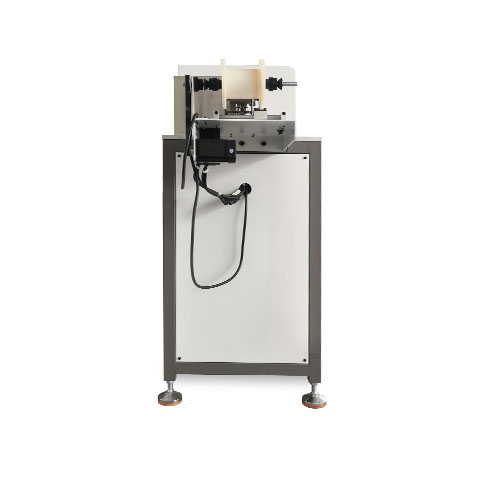

Diamond wire cutting machine

Diamond wire cutting machine

(This is an old model) Suitable for the surface treatment of precious metal wires/tubes with a diameter of 0.35-4.5mm. It is easy to operate, stable in operation, and can support long-term operation without the risk of wire breakage.
Applicable materials: Gold, silver, copper, K gold
Processing Specifications: Φ0.35mm~Φ4.5mm(Wire/tube)
Working Speed: About 50g/h (efficiency varies with different flower styles)
Dimensions: 800mm×500mm×1250mm
Voltage: 220V 50HZ
Power: 0.5KW
Control System: LCD
Weight: 190Kg

Efficient and stable: It supports long-term unattended automatic operation until the material processing is completed and the machine automatically stops. Its operation process is stable and not prone to failure, which greatly improves production efficiency.

High precision: The processing precision is high, which can meet the needs of various complex patterns and patterns, ensuring the exquisite beauty of jewelry. Versatility: It can not only process the surface of wire or tube with a diameter of 0.35mm to 4.0mm, but also adapt to different production needs.

Before and after comparison of jewelry wire surface - Smooth plain wire versus diamond-cut textured wire with brilliant reflective patterns created by Sible diamond cutting machine

Safety protection: Equipped with an advanced safety protection system, it monitors the equipment status and surrounding environment in real time to ensure the safety of operators.

Video demonstration of Sible Diamond Cutting Machine for Wire and Tube in action - Automatic feeding and precision diamond cutting process on jewelry metal wires and tubes

sible jewelry Diamond Cutting Machine for Wire & Pipe


Tags:
Applicable materialsGold, silver, copper, K gold
Processing SpecificationsΦ0.35mm~Φ4.5mm(Wire/tube)
Working SpeedAbout 50g/h (efficiency varies with different flower styles)
Dimensions800mm×500mm×1250mm
Voltage220V 50HZ
Power0.5KW
Control SystemLCD
Weight190Kg
