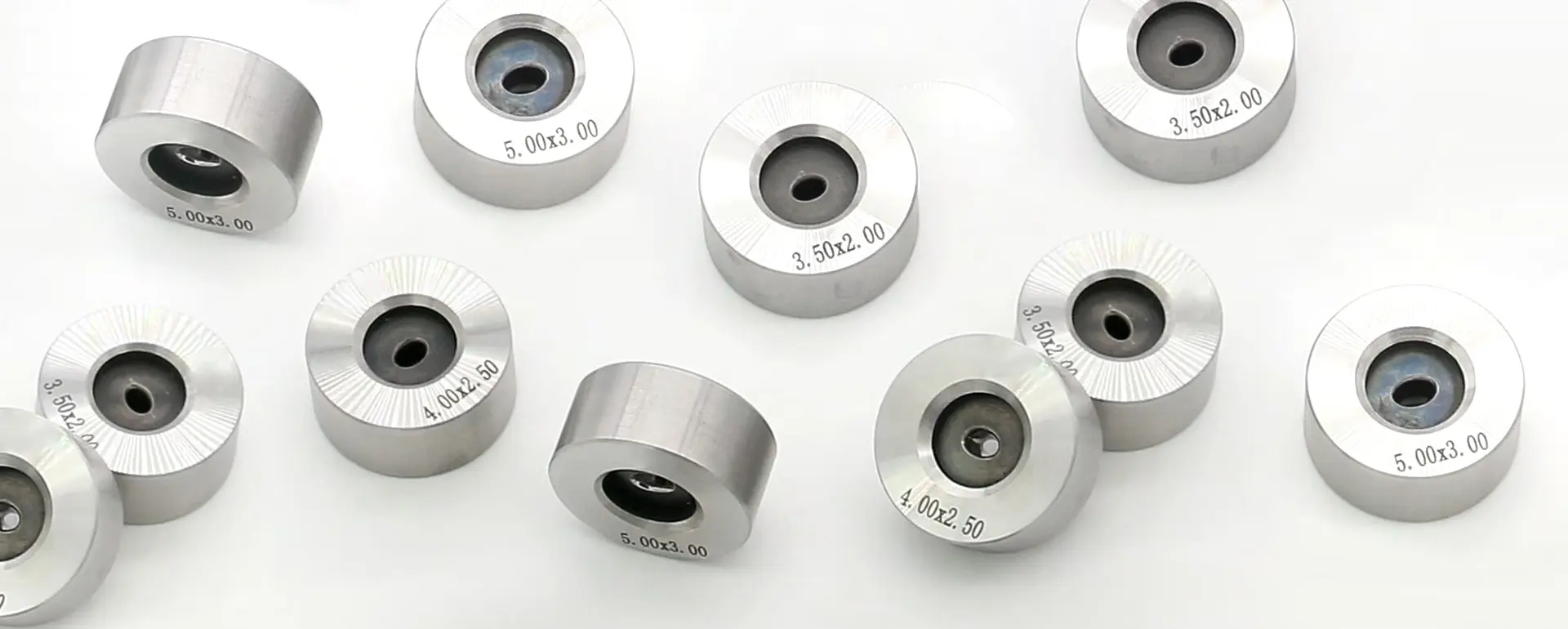

Professional wire drawing dies
wire drawing dies are widely used in occasions that need high-temperature resistance and impact resistance and only need short-term use. It is an excellent choice for manufacturing ferrous metals.
HIGH PRECISION TOLERANCELONG SERVICE LIFE
Manufactured with high-quality cores, dimensionscan be made to exact tolerances regardless of size.
HIGH PRECISION TOLERANCELONG SERVICE LIFE
Manufactured with high-quality cores, dimensionscan be made to exact tolerances regardless of size.

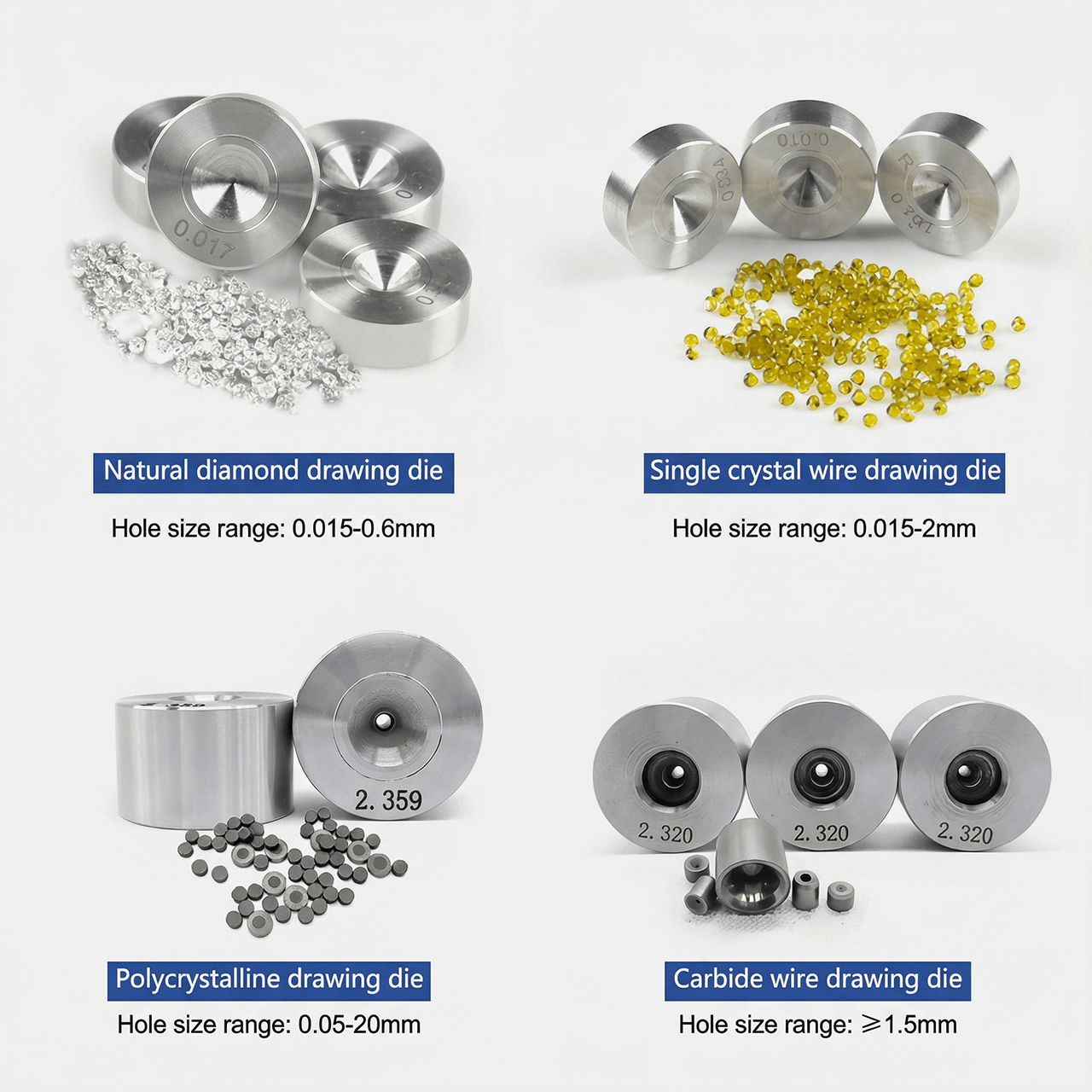

Material:
Tungsten Carbide / PCD / Diamond
size:
Customized
Hole Shape:
Round hole/Customized
Hole diameter:
0.05mm-20mm
Advantage:
Sharp and wear-resistant
These wires offer uniform texture, strong wear resistance, high finish, high precision, and long service life, ensuring surface finish and precision during the long-draw process.

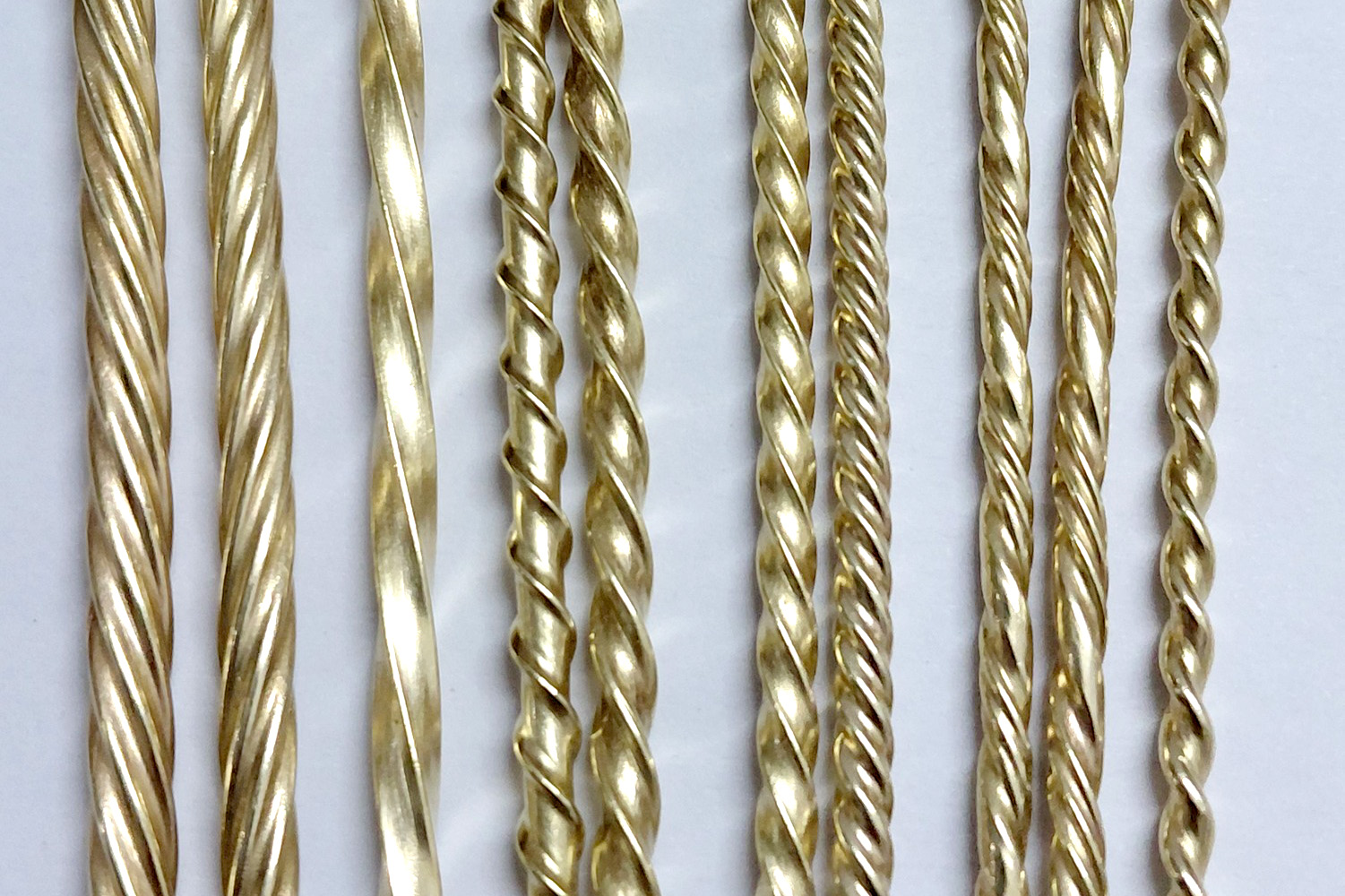

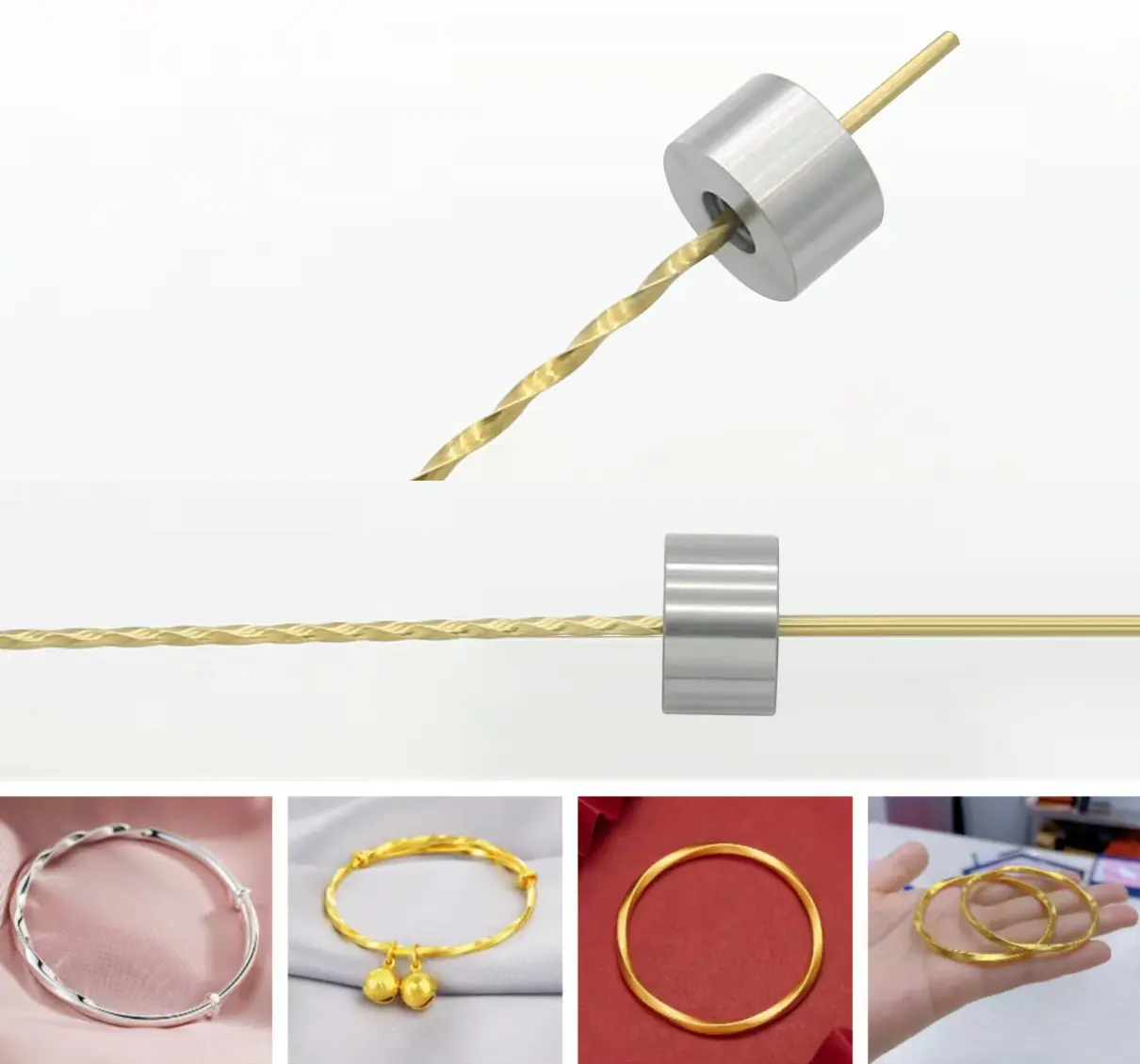

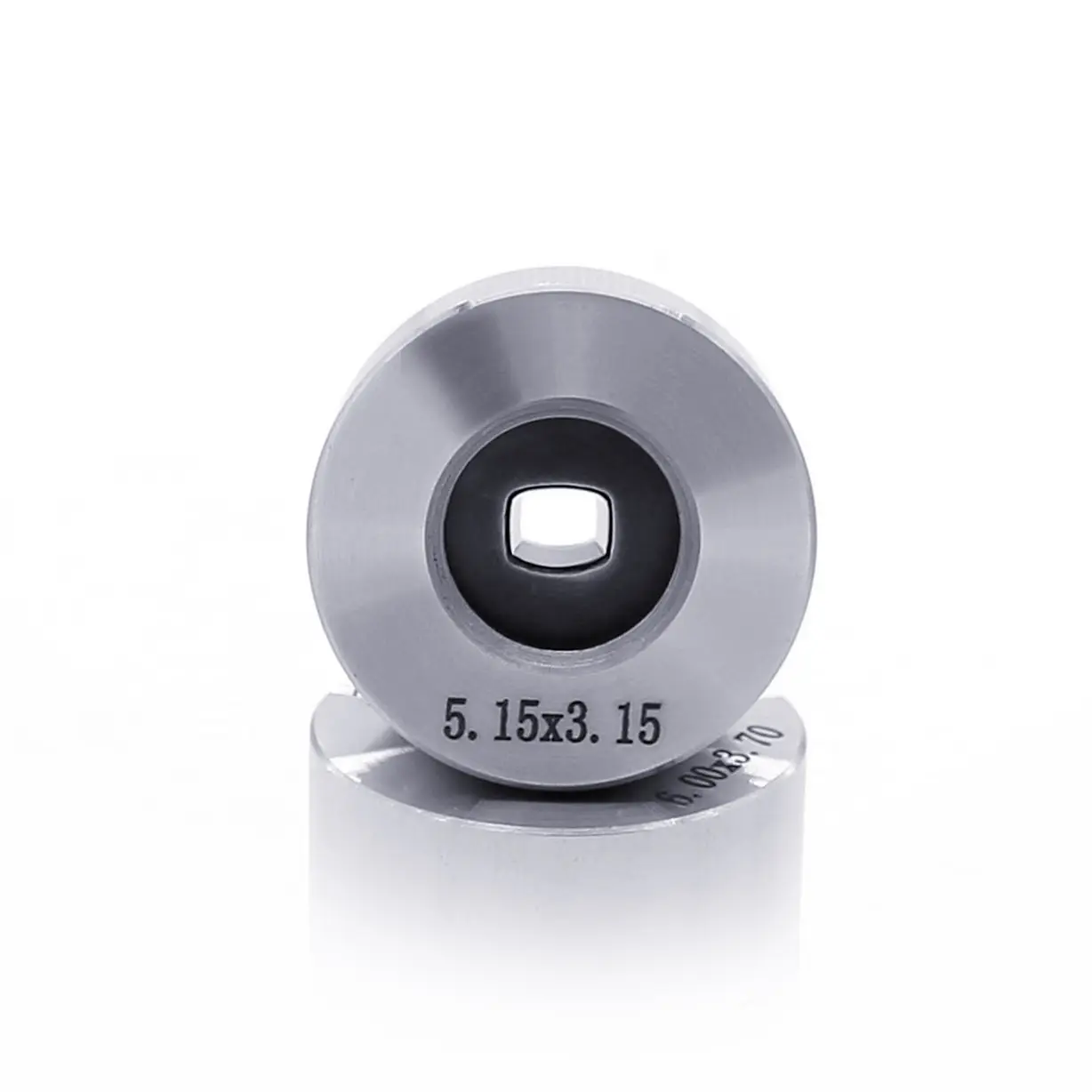

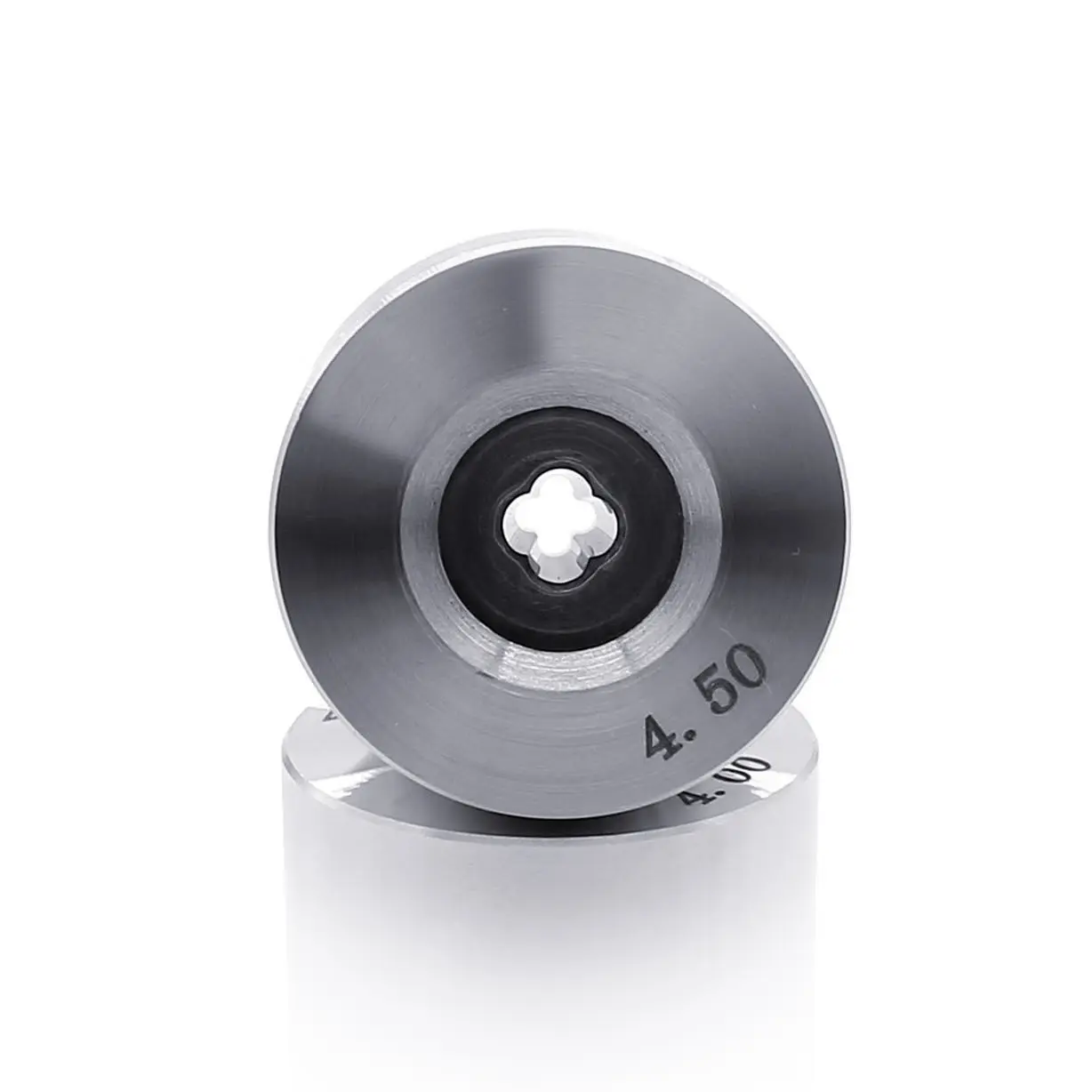

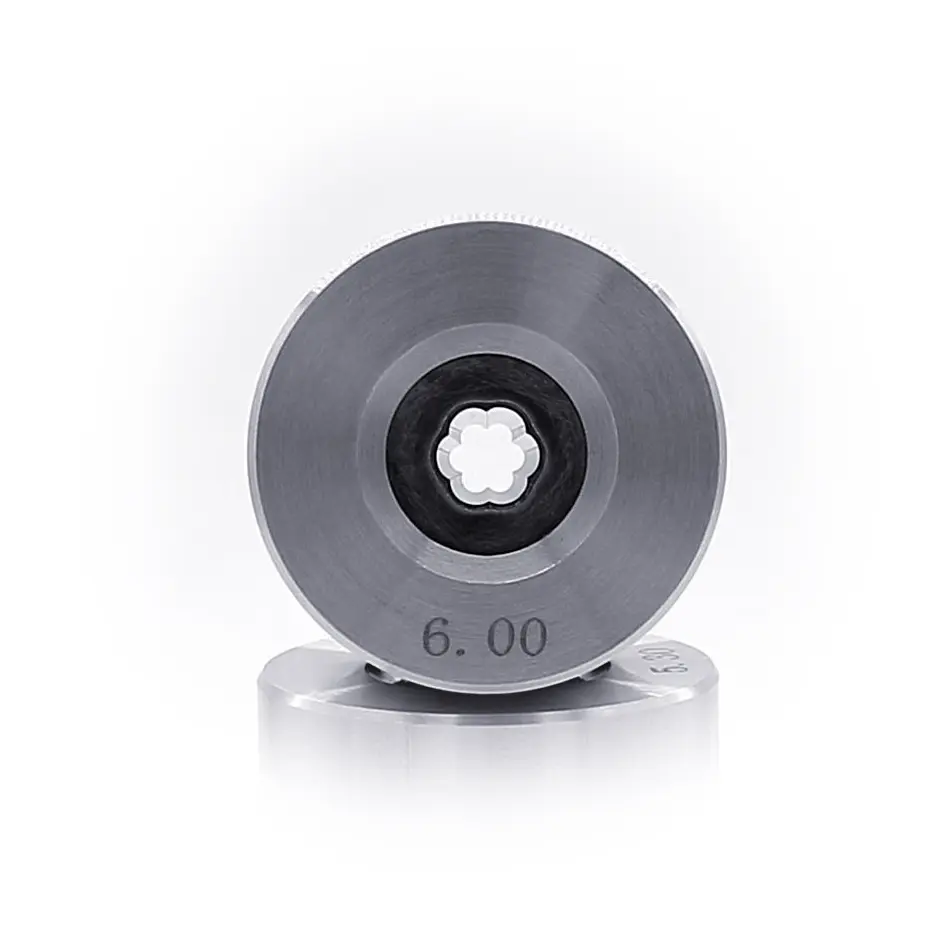

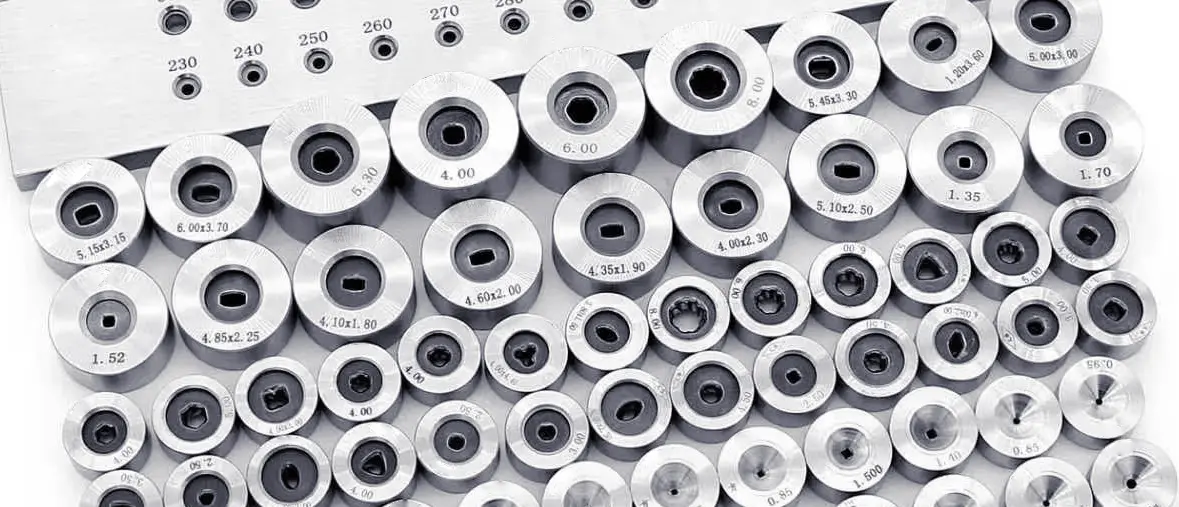

They can produce shapes such as square, flat square, triangle, hexagon, octagon, semicircle, ellipse, fan, Z-shape, and tile.
The minimum aperture for square dies is 0.18 x 0.18 mm, for flat dies is 0.08 x 0.20 mm, for semicircle dies is 0.20 x 0.40 mm, and for triangular dies is 0.25 x 0.25 mm.
Sharp corners can be controlled within 0.01 mm, with a tolerance of approximately 0.001 mm. Custom specifications and shapes are also available upon request.
| Material | Tungsten Carbide / PCD / Diamond |
| size | Customized |
| Hole Shape | Round hole/Customized |
| Hole diameter | 0.05mm-20mm |
| Advantage | Sharp and wear-resistant |
