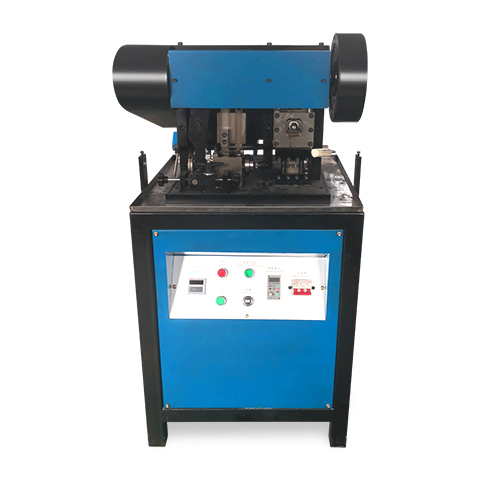

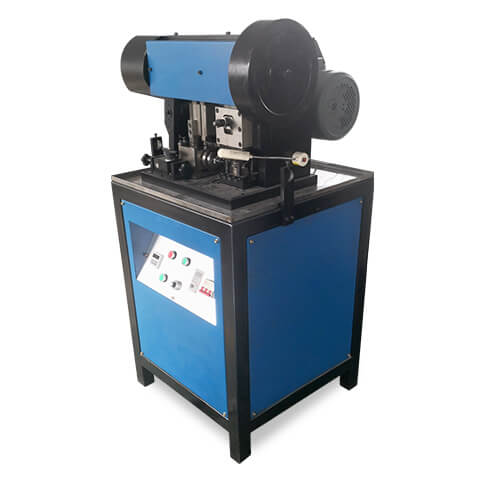

Hollow Ball Making Machine

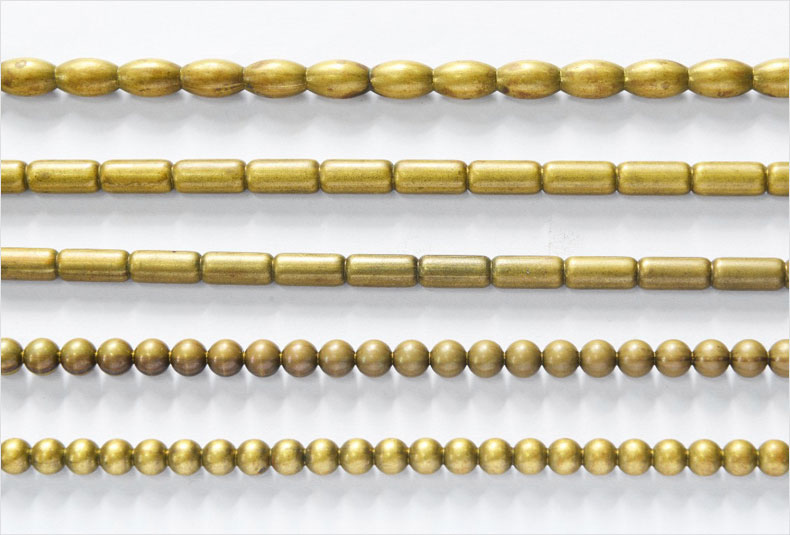

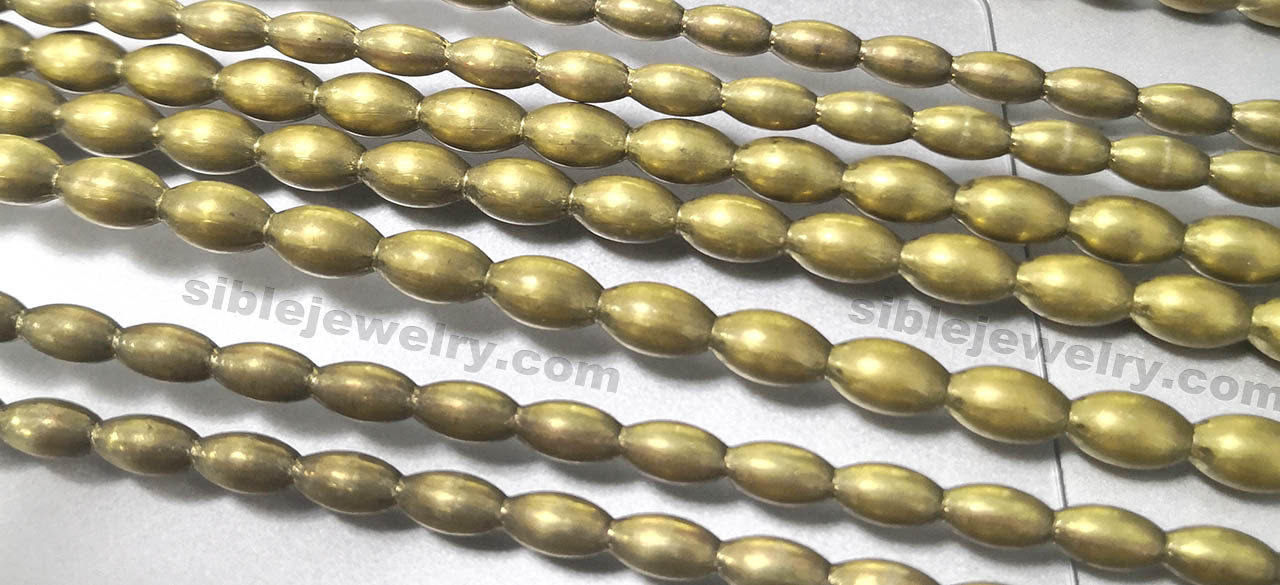

The Sible hollow ball making machine is a fully automatic solution for producing hollow jewelry beads from flat metal sheet. It forms round balls, olive beads, abacus beads, tear-drop and custom-shaped beads from 1.5 mm to 14 mm in diameter — ideal for gold, K-gold, silver and copper jewelry production.

The machine automatically completes feeding, stamping and folding in one continuous cycle, delivering up to 120 beads per minute with uniform size and a smooth surface. With an intelligent auto pause-time adjustment based on tube length and an auto power-off delay function, it maximizes raw material usage and minimizes waste — one operator can easily manage multiple machines at the same time.

Key Features

Uniform Bead Output: Consistent bead length and smooth surface on every piece, with automatic pause-time adjustment based on tube length.

High Efficiency: Up to 120 beads per minute, significantly boosting daily output.

Simple Mold Change: Molds are compatible across all machine specifications; one operator can manage several machines at once.

Material Savings: Auto power-off delay reduces tube-end waste and maximizes precious metal usage.

Stable Long-Run Operation: Built for continuous factory-scale production without performance drop.

Wide Material Compatibility: Processes 14K, 18K, 24K gold, silver, copper, brass and K-gold alloys.

Compact & 220V-Friendly: Only 2.2 kW power, works with standard 220V 50Hz supply, saving power cost and installation effort in small workshops.

Technical Specifications

Applicable materials: Gold (14K/18K/24K), silver, copper, brass, K-gold

Bead diameter: 1.5 – 14 mm (customized by mold)

Working speed: Up to 120 pcs/min

Rotation angle: 180° / 360°

Power: 2.2 KW, 220V 50Hz

Dimensions: 600 × 600 × 1180 mm

Weight: 300 kg

Applications

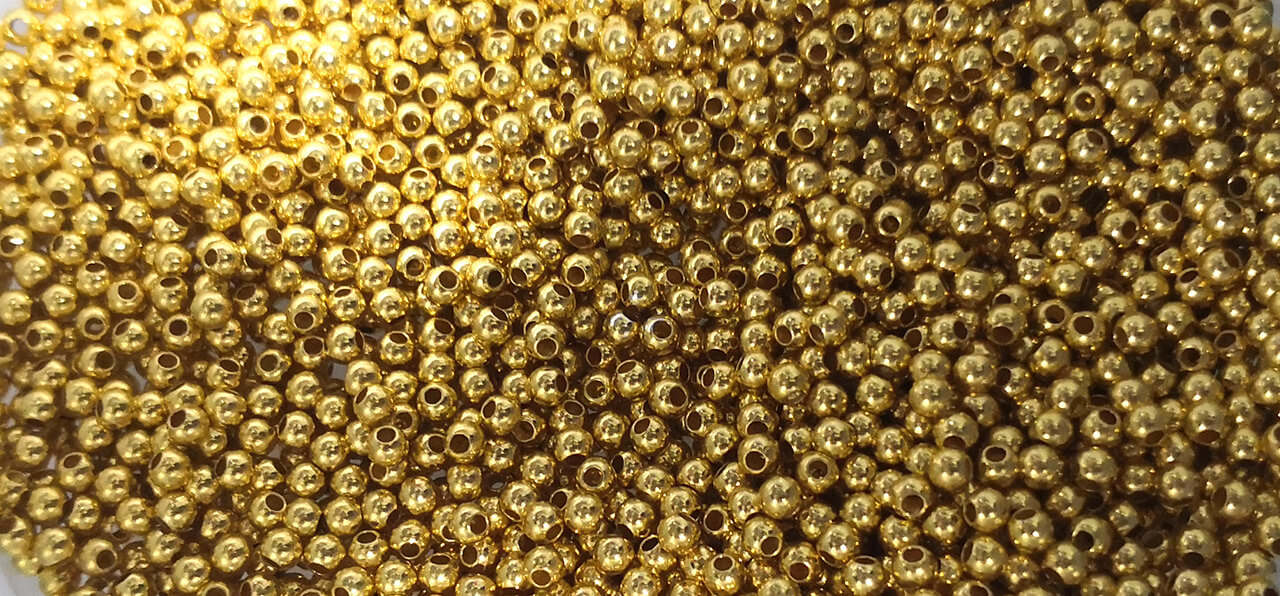

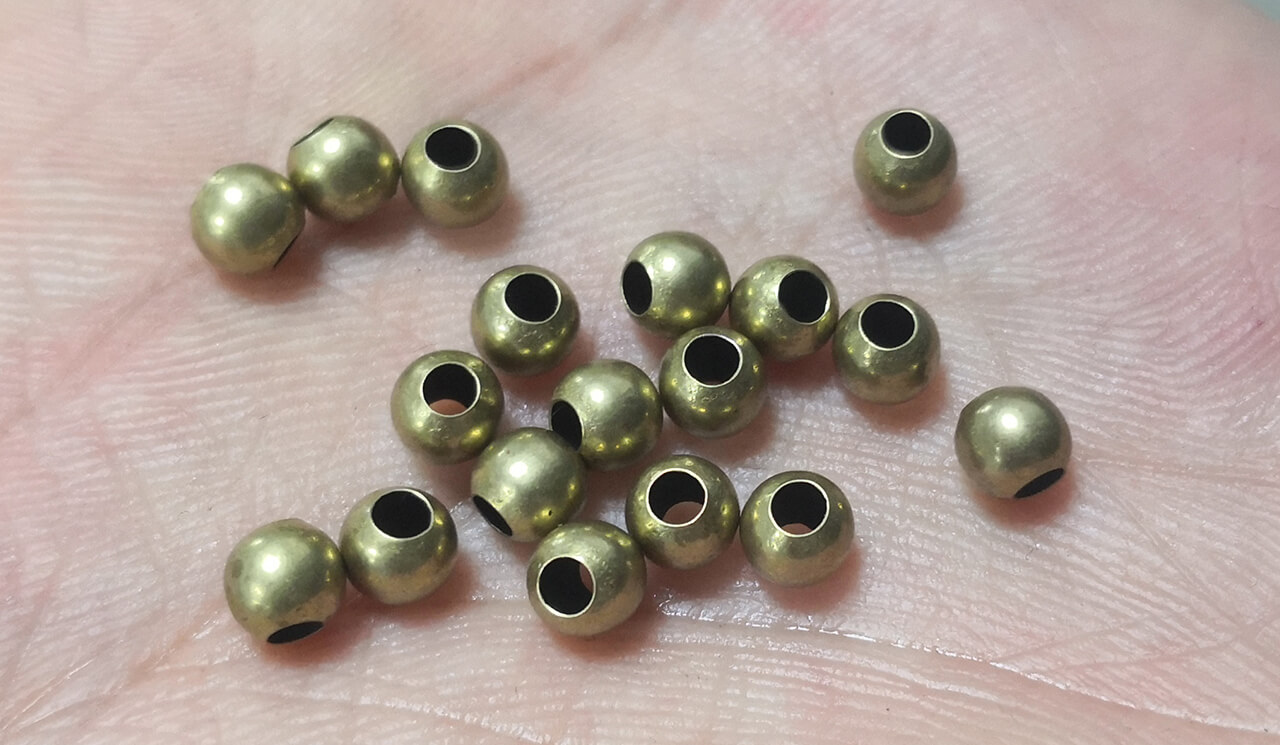

Perfect for producing lightweight hollow beads for earrings, bracelets, necklaces and other fine jewelry. Widely used in jewelry factories producing gold and silver beads with consistent quality and stable weight — from small workshops to mass production lines. For solid bead production, check out our automatic ball making machine.

Why Choose Sible

• Years of experience in jewelry equipment manufacturing, machines engineered for real production environments

• Factory-direct pricing, no middleman markup

• Responsive after-sales support and technical consulting

• Every machine tested before delivery

Not sure which machine fits your workshop? Read our guide to choosing the right jewelry making machine.
